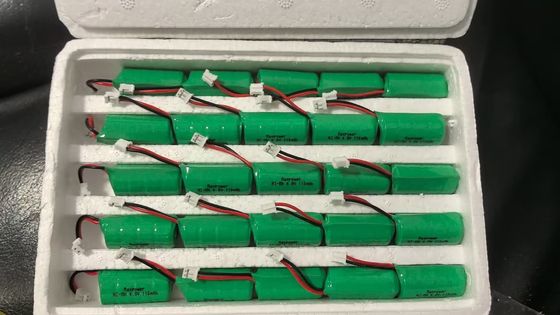

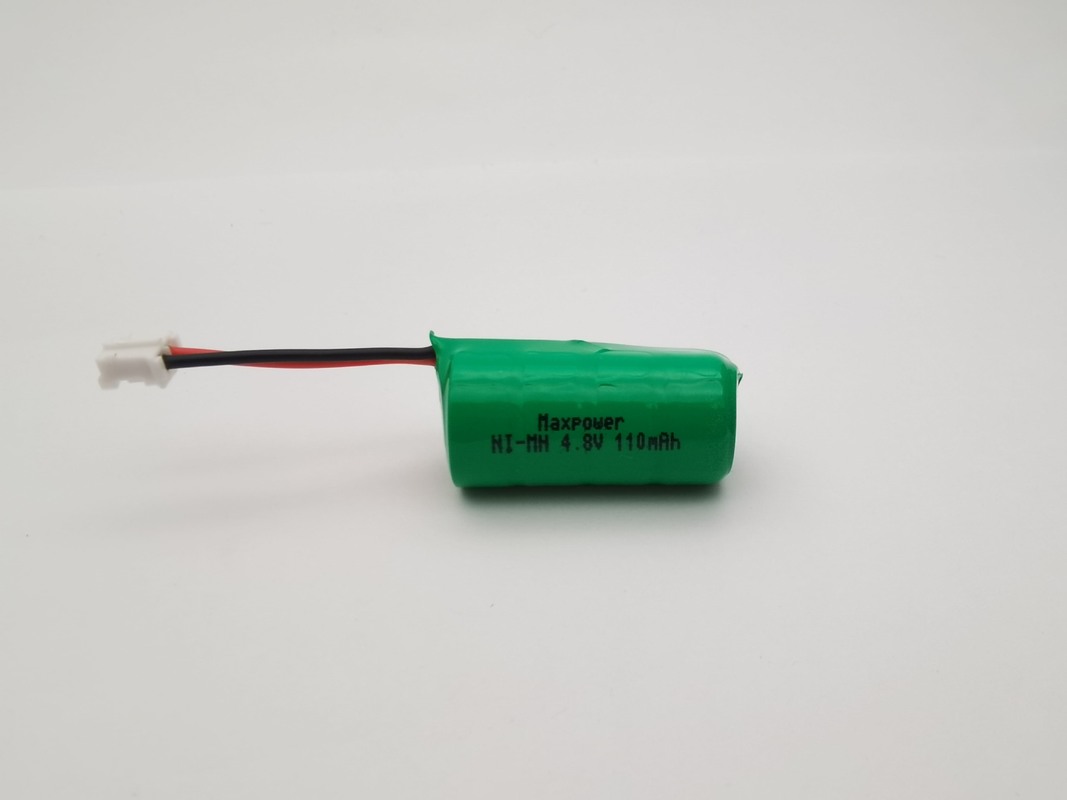

Rechargeable 110mAh 4.8V Ni-MH Button Battery Pack
NiMH Button Battery 4.8V 110mAh rechchargeable nimh battery 4.8V
1. High temperature nimh button cell battery pack 4.8V 110mAh temperature range -20 to 70 degree
2. Stable voltage output and discharge platform keep longer working time
3. Customized sizes, packs, tags, labels, plugs, connectors, over currents protection,
temperature control protection, NTC and configurations available
4. Full set of delivery documents UN38.3,MSDS,Sea and air safety certificate
5. Fast delivery within one week fresh stock and mature nimh button cell solution
6. longer cycle life more than 500cycles shelf lilfe more than 3-5 years free maintenance
Contact us for nimh customized battery pack data sheet and quotation directly .
Lucy@maxpowersz.com
Wechat:0086-13714669620
| Battery Type |
Rechargeable button cell battery Pack |
| Model No. |
nimh 4.8V 110mAh |
| Nominal Voltage |
4.8V |
| Nominal Capacity@0.2C |
110mAh |
| Initial IR |
below 10 mΩ |
| Dimension |
Diameter 16.3mm X Height 32mm |
| Max. Charging Power |
0.5C |
| Discharging Power |
0.5C |
| Max. Continuous Power |
0.5C |
| Charging Voltage |
6.2V |
| Discharging Cut-off Voltage |
4.0V |
| Weight |
16.7 g |
| Working temperature |
-20℃~70℃ |
| Battery HS Code |
8507500000 |
| Quality Guarantee |
12months |
| Cycle life |
more than 500 cycles |
| Battery Certificate |
MSDS KC CE CB IEC62133 UL PSE |
| Rechargeable or not |
Yes, rechargeable |
| Service |
OEM ODM accept customized battery pack |
| Place of Origin |
China |
| Sample Lead Time |
5-7 days |
| Bulk order L/T |
Within 20-25 days |
Attached our part of button cell nimh rechargeable battery models as below :
| Modes No. |
Rated capacity(mAh) |
Rated Voltage(V) |
Dimensions(mm) |
Standard charge(mA*h) |
Conventional discharge(mA) |
Ambient temperature(℃) |
| Φ |
H |
L |
Charge |
Discharge |
| MP40H |
40 |
1.2 |
12.0 |
5.5 |
|
4*14~16 |
8 |
0~40 |
-25~70 |
| MP60H |
60 |
1.2 |
15.6 |
6 |
|
6*14~16 |
12 |
0~40 |
-25~70 |
| MP80H |
80 |
1.2 |
15.6 |
6 |
|
8*14~16 |
16 |
0~40 |
-25~70 |
| MP110H |
110 |
1.2 |
15.6 |
8.4 |
|
11*14~16 |
22 |
0~40 |
-25~70 |
| MP120H |
120 |
1.2 |
15.6 |
8.4 |
|
12*14~16 |
24 |
0~40 |
-25~70 |
| MP160H |
160 |
1.2 |
15.0 |
5.8 |
24.7 |
16*14~16 |
32 |
0~40 |
-25~70 |
| MP250H |
250 |
1.2 |
25.2 |
6.4 |
|
25*14~16 |
50 |
0~40 |
-25~70 |
| MP330H |
330 |
1.2 |
25.2 |
7.8 |
|
33*14~16 |
66 |
0~40 |
-25~70 |
| MP350H |
350 |
1.2 |
25.2 |
8.5 |
|
35*14~16 |
70 |
0~40 |
-25~70 |
| MP450H |
450 |
1.2 |
34.1 |
5.6 |
24.1 |
45*14~16 |
90 |
0~40 |
-25~70 |
| MP500H |
500 |
1.2 |
34.6 |
5.6 |
|
50*14~16 |
100 |
0~40 |
-25~70 |
| MP1000H |
1000 |
1.2 |
34.6 |
10 |
|
100*14~16 |
200 |
0~40 |
-25~70 |
OEM Accepted.Tags,plugs and connectors are available;
Environment friendly.The enterprise's products do not contain harmful substances such as mercury,lead,and cadmium;
Application Sola lamps,Utility metering,Memory back-up,Alarms and security devices,Automotive electronics,Tollgate systems,
Military electronics,Automatic meter reading,professional electronics,Consumer Electronics,ect.
For more button cell nimh battery and customized battery pack ,contact us today .
